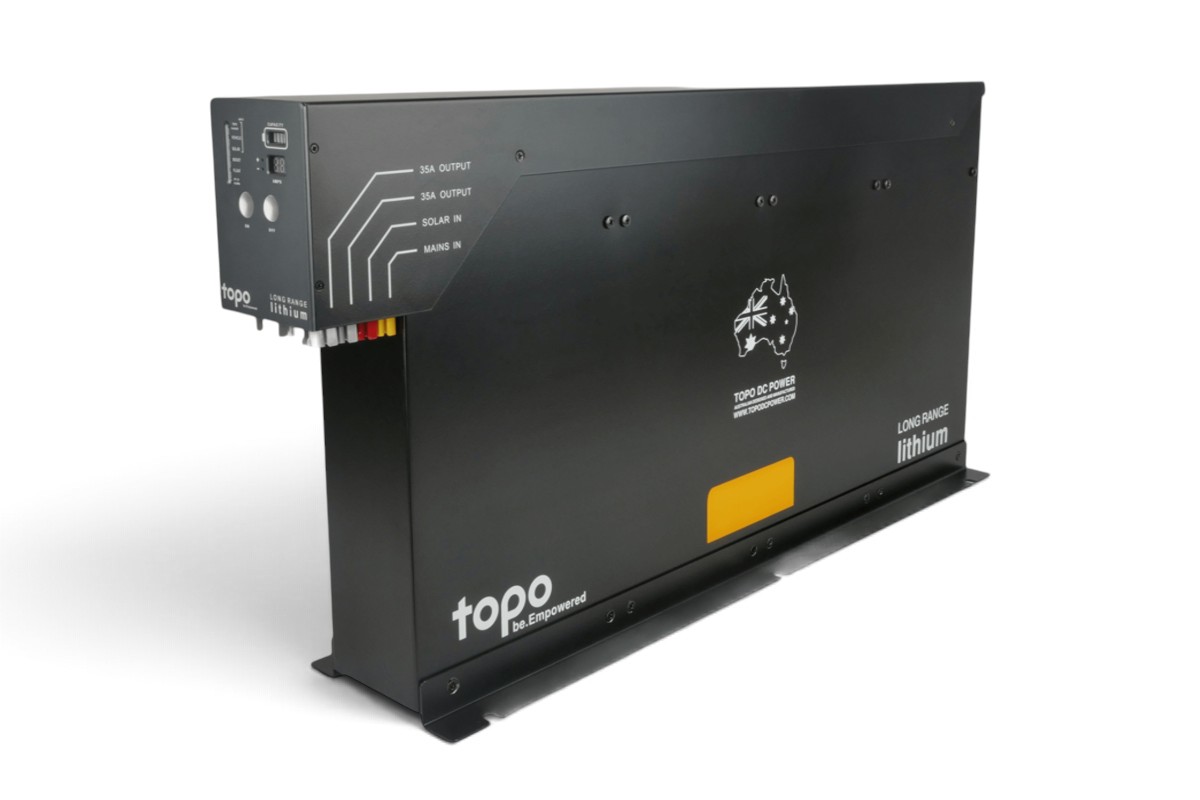

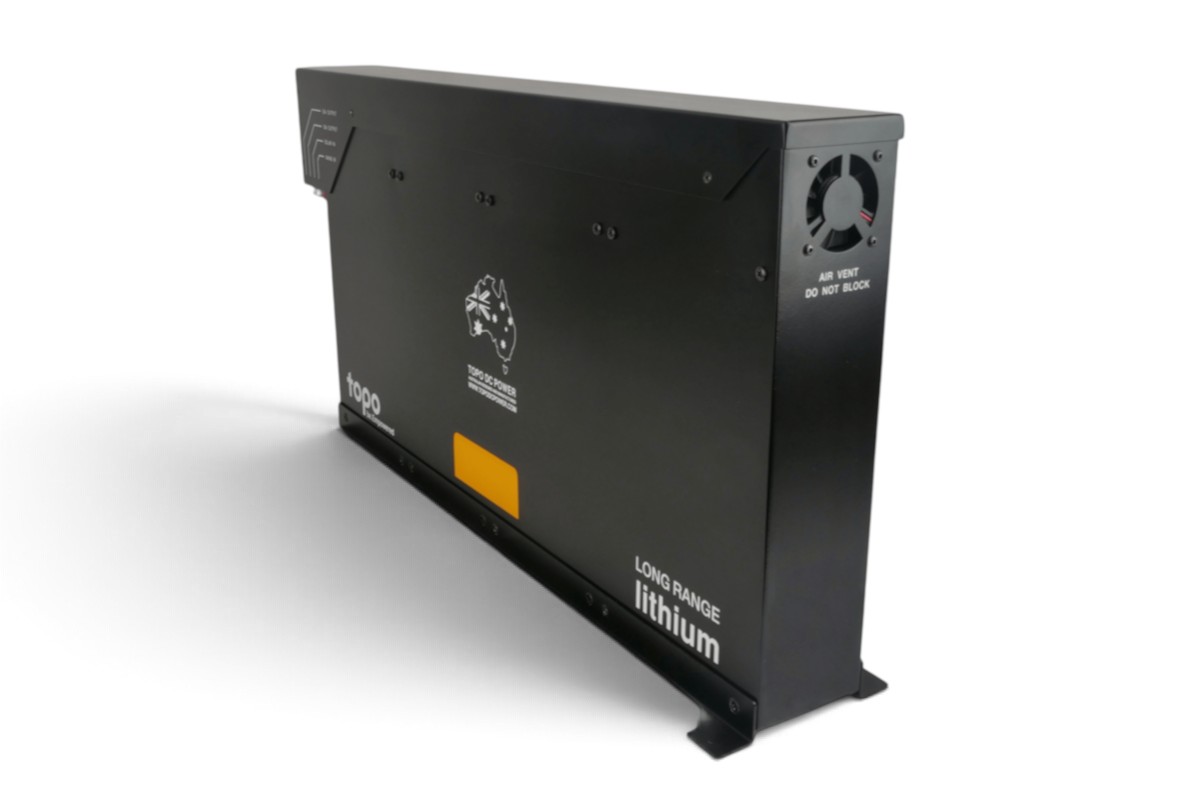

Topo Long Range Power System
| UOM |
|---|
A high-capacity 12V 144Ah LiFePO₄ power system delivering 1,728Wh of stored energy for extended periods away from mains power. Featuring integrated 40A DC/DC, solar and mains charging, wireless monitoring and multiple high-current outputs, it provides dependable long-range power for remote work, field operations, vehicles and off-grid applications.
Key Features
- Australian designed and made for demanding Australian environments
- 12V / 144Ah LiFePO₄ battery
- 1,728Wh energy capacity
- Slimline, space-efficient design
- Built-in 40A DC/DC vehicle charger
- Vehicle starting-battery protection
- Regulated solar charging up to 25A
- Multiple high-current outputs
- Integrated Battery Management System
- Protected outputs with magnetic circuit breakers
- Mounting brackets included
- Complete connector set included

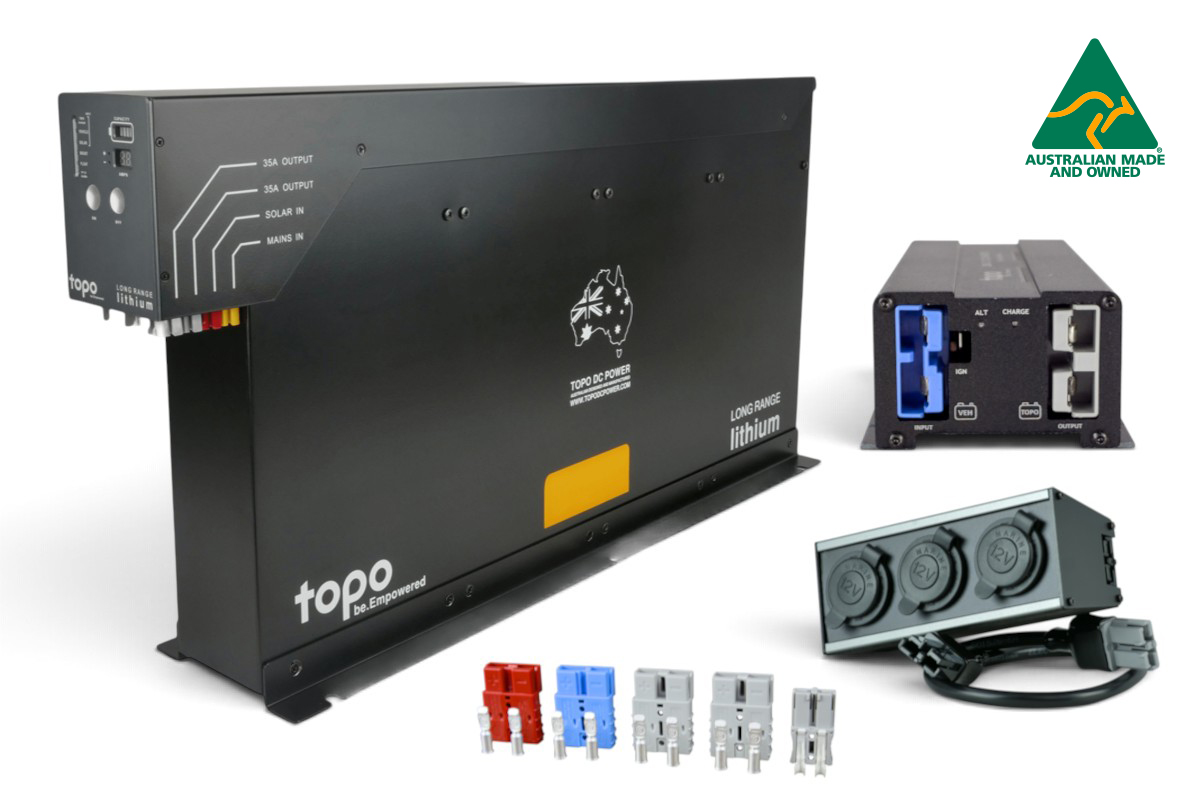

What’s Included:
- 1x Long range unit (144amp hour battery)
- 1x 10amp mains charger
- 1x Mag board (power fridges, starlink, charge tablets)
- 1x connector set
Specifications
| Battery Chemistry | LiFePO₄ |
| Nominal Voltage | 12V DC |
| Capacity | 144Ah |
| Energy Capacity | 1,728Wh |
| DC/DC Vehicle Charger | Built-in 40A with voltage sensing |
| Solar Input | Regulated, up to 25A |
| Mains Charger | 10A, 240V AC input / 15V DC output |
| Wireless Monitor | Included |
| High-Current Outputs | 2 × 50A + 2 × 20A |
| Vehicle Input | 1 × 50A Blue Anderson |
| Solar Input | 1 × 35A Red Mini |
| Output Connectors | 2 × 50A Grey Anderson + 2 × 35A Grey Mini |
| Vehicle Charge Fuse | 80A dual MIDI fuse |
| Battery Management | Integrated BMS |
| Output Protection | Magnetic circuit breakers |
| Dimensions | 630 × 120 × 310mm with brackets |
| Alternative Bracket Configuration | 630 × 80 × 310mm |
| Weight | Approx. 21kg |
| Mounting | Mounting brackets included |
